Objective
The objective of this laboratory is to demonstrate issues associated with switch bounce and how to manage it.
Preparation
The following schematic details the hardware setup.
Table 1 lists the components used in the schematic.
ID | Component | Manufacturer Part No. | Value | Qty. |
Base Components | ||||
IC1 | MCU | PIC24FJ256GA702-I/SP | – | 1 |
IC2 | Regulator | LM1117T-3.3/NOPB | 3.3V / 800mA | 1 |
C1 & C2 | Capacitor (tantalum) | TAP106K025SRW | 10uF / 25V | 2 |
C3 & C4 | Capacitor (ceramic) | SR155C103KARTR1 | 0.01uF / 50V | 2 |
C5 & C6 | Capacitor (ceramic) | SR155C104KARTR1 | 0.1uF / 50V | 2 |
C7 & C8 | Capacitor (ceramic) | SR151A150JARTR1 | 15pF / 100V | 2 |
C9 | Capacitor (ceramic) | FG16X7R1E106KRT06 | 10uF / 25V | 1 |
Y1 | Crystal | ABL-16.000MHZ-B2 | 16MHz | 1 |
R1 | Resistor | SFR2500001002FR500 | 10kΩ | 1 |
R2 | Resistor | SFR2500001004FR500 | 1MΩ | 1 |
J1 | Header (6-way) (PICkit 5) | 22-27-2061 | – | 1 |
Additional Components | ||||
R3 – R6 | Resistor | SFR2500001400FR500 | 140Ω | 4 |
R7 | Resistor | SFR2500001002FR500 | 10kΩ | 1 |
D1 – D4 | LED (red) | WP132XID | 10mA | 4 |
C10 | Capacitor (ceramic) | SR155C104KARTR1 | 0.1uF / 50V | 1 |
SW1 | Switch (tactile) | FSM4JART | – | 1 |
Refer to the following source code.
/* Switch_Debounce (source code) */
/* MCU: PIC24FJ256GA702 */
/* Author: Michael */
/**************************** Configuration Bits ******************************/
// FSEC
#pragma config BWRP = OFF // Boot Segment Write-Protect bit (Boot Segment may be written)
#pragma config BSS = DISABLED // Boot Segment Code-Protect Level bits (No Protection (other than BWRP))
#pragma config BSEN = OFF // Boot Segment Control bit (No Boot Segment)
#pragma config GWRP = OFF // General Segment Write-Protect bit (General Segment may be written)
#pragma config GSS = DISABLED // General Segment Code-Protect Level bits (No Protection (other than GWRP))
#pragma config CWRP = OFF // Configuration Segment Write-Protect bit (Configuration Segment may be written)
#pragma config CSS = DISABLED // Configuration Segment Code-Protect Level bits (No Protection (other than CWRP))
#pragma config AIVTDIS = OFF // Alternate Interrupt Vector Table bit (Disabled AIVT)
// FBSLIM
#pragma config BSLIM = 0x1FFF // Boot Segment Flash Page Address Limit bits (Enter Hexadecimal value)
// FOSCSEL
#pragma config FNOSC = PRIPLL // Oscillator Source Selection (Primary Oscillator with PLL module (XT + PLL, HS + PLL, EC + PLL))
#pragma config PLLMODE = PLL96DIV4 // PLL Mode Selection (96 MHz PLL. Oscillator input is divided by 4 (16 MHz input))
#pragma config IESO = OFF // Two-speed Oscillator Start-up Enable bit (Start up with user-selected oscillator source)
// FOSC
#pragma config POSCMD = HS // Primary Oscillator Mode Select bits (HS Crystal Oscillator Mode)
#pragma config OSCIOFCN = ON // OSC2 Pin Function bit (OSC2 is general purpose digital I/O pin)
#pragma config SOSCSEL = OFF // SOSC Power Selection Configuration bits (Digital (SCLKI) mode)
#pragma config PLLSS = PLL_PRI // PLL Secondary Selection Configuration bit (PLL is fed by the Primary oscillator)
#pragma config IOL1WAY = OFF // Peripheral pin select configuration bit (Allow multiple reconfigurations)
#pragma config FCKSM = CSDCMD // Clock Switching Mode bits (Both Clock switching and Fail-safe Clock Monitor are disabled)
// FWDT
#pragma config WDTPS = PS1 // Watchdog Timer Postscaler bits (1:1)
#pragma config FWPSA = PR32 // Watchdog Timer Prescaler bit (1:32)
#pragma config FWDTEN = OFF // Watchdog Timer Enable bits (WDT and SWDTEN disabled)
#pragma config WINDIS = OFF // Watchdog Timer Window Enable bit (Watchdog Timer in Non-Window mode)
#pragma config WDTWIN = WIN50 // Watchdog Timer Window Select bits (WDT Window is 50% of WDT period)
#pragma config WDTCMX = WDTCLK // WDT MUX Source Select bits (WDT clock source is determined by the WDTCLK Configuration bits)
#pragma config WDTCLK = SYSCLK // WDT Clock Source Select bits (WDT uses system clock when active, LPRC while in Sleep mode)
// FPOR
#pragma config BOREN = OFF // Brown Out Enable bit (Brown Out Disabled)
#pragma config LPCFG = OFF // Low power regulator control (No Retention Sleep)
#pragma config DNVPEN = DISABLE // Downside Voltage Protection Enable bit (Downside protection disabled when BOR is inactive)
// FICD
#pragma config ICS = PGD1 // ICD Communication Channel Select bits (Communicate on PGEC1 and PGED1)
#pragma config JTAGEN = OFF // JTAG Enable bit (JTAG is disabled)
// FDEVOPT1
#pragma config ALTCMPI = DISABLE // Alternate Comparator Input Enable bit (C1INC, C2INC, and C3INC are on their standard pin locations)
#pragma config TMPRPIN = OFF // Tamper Pin Enable bit (TMPRN pin function is disabled)
#pragma config SOSCHP = ON // SOSC High Power Enable bit (valid only when SOSCSEL = 1 (Enable SOSC high power mode (default))
#pragma config ALTI2C1 = ALTI2CEN // Alternate I2C pin Location (SDA1 and SCL1 on RB9 and RB8)
/************************* Configuration Bits (end) ***************************/
#define FCY 16000000 // FCY = FOSC / 2 (FCY: Instruction clock cycle) (FOSC: System clock cycle)
#define LED_Red_1 LATBbits.LATB6 // LED_Red_1 associated with MCU Pin #15
#define LED_Red_2 LATBbits.LATB7 // LED_Red_2 associated with MCU Pin #16
#define LED_Red_3 LATBbits.LATB8 // LED_Red_3 associated with MCU Pin #17
#define LED_Red_4 LATBbits.LATB9 // LED_Red_4 associated with MCU Pin #18
#define Switch_1 PORTBbits.RB10 // Switch_1 associated with MCU Pin #21
#include <libpic30.h> // Delay functions
#include <xc.h> // MCU pin mapping
int main(void)
{
// Set pin direction
TRISBbits.TRISB6 = 0; // MCU Pin #15 output (LED_Red_1)
TRISBbits.TRISB7 = 0; // MCU Pin #16 output (LED_Red_2)
TRISBbits.TRISB8 = 0; // MCU Pin #17 output (LED_Red_3)
TRISBbits.TRISB9 = 0; // MCU Pin #18 output (LED_Red_4)
TRISBbits.TRISB10 = 1; // MCU Pin #21 input (Switch_1)
/************************* configure MCU modules **************************/
// Analog Ports
ANSA = 0; // Disable A (PIC24FJ256GA702 datasheet p.126 Table 11-1)
ANSB = 0;
// Comparators
CM1CONbits.CEN = 0; // Disable #1 (PIC24FJ256GA702 datasheet p.310 Register 25-1)
CM2CONbits.CEN = 0;
CM3CONbits.CEN = 0;
// ADC
AD1CON1bits.ADON = 0; // Disable module (PIC24FJ256GA702 datasheet p.291 Register 24-1)
/********************** configure MCU modules (end) ***********************/
uint8_t Counter = 0; // Global variable (Counter) 8-bits
while (1)
{
while (Switch_1 == 1); // Wait until Switch_1 closed
Counter ++; // Increase value of Counter by one
if (Counter > 4)
{
Counter = 1;
}
while (Switch_1 == 0); // Wait until Switch_1 opened
if (Counter == 1)
{
LED_Red_1 = 1; // LED_Red_1 ON
LED_Red_2 = 0; // LED_Red_2 OFF
LED_Red_3 = 0;
LED_Red_4 = 0;
}
else if (Counter == 2)
{
LED_Red_1 = 0;
LED_Red_2 = 1;
LED_Red_3 = 0;
LED_Red_4 = 0;
}
else if (Counter == 3)
{
LED_Red_1 = 0;
LED_Red_2 = 0;
LED_Red_3 = 1;
LED_Red_4 = 0;
}
else
{
LED_Red_1 = 0;
LED_Red_2 = 0;
LED_Red_3 = 0;
LED_Red_4 = 1;
}
}
return 0;
}
Testing

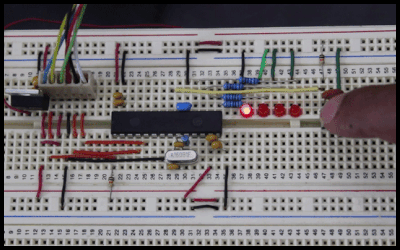

Press the button repeatedly and observe the LEDs illuminating in sequence without skipping. The capacitor acts as a low-pass filter, removing high-frequency noise from the switch “bouncing” by temporarily shorting the switch to ground. This can be understood by the current through a capacitor with respect to the change in voltage, as shown in Equation 1.
\begin{equation}
\tag{1}
i(t) = C \frac{dv}{dt}
\end{equation}
Remove the 0.1μF capacitor, in parallel with the button, and press the button repeatedly, observing the LEDs illuminating not in sequence.
Conclusion
It appears that using a capacitor “solves” the bounce issue; however, depending on the application, this method can be acceptable for projects. For other applications, such as sensitive control systems, this method is unacceptable. A more robust method is required, featuring more components and perhaps software debouncing.
